SG633 SAB GOBLIN 630 COMPETITION - FLYBARLESS ELECTRIC HELICOPTER ORANGE KIT

General Specifications

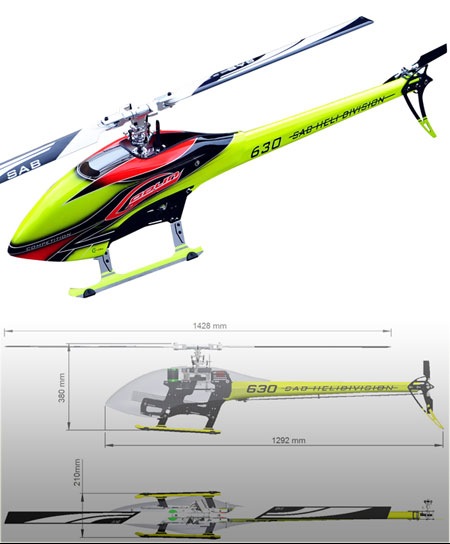

• Main rotor diameter:  1428 mm (with 630 mm blades)

• HPS Head

• Main blade length: 630 mm

• Tail rotor diameter: 285 mm

• Tail blade length: 105 mm

•  Main shaft diameter: 12 mm

• Tail shaft diameter: 6 mm

• Spindle shaft diameter: 10 mm

• Gear Ratios 8.6-11.9 : 1
• Weight including electronics: 3320 g (excluding flight battery).

• 22T motor pulley included (other pulley sizes available)

Electronic Specifications
• Cyclic Servos: Standard size (40mm)

• Tail Servo: Standard size (40mm)

• Typical Speed Controller: 120A

• Motors: (Max Diameter: 64 mm, Max Height: 64 mm)

• Battery compartment: 60x58x350mm (adaptable to 64x58x350mm)




Kit Includes:

• 22T motor pulley (other pulley sizes available)

• 2 battery tray

• 630 mm main blades

• 105 mm tail blades
