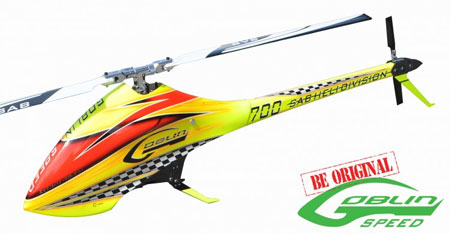

SG720 GOBLIN 700 SPEED GIALLO

Kit Goblin 700 Speed
Completo di pale rotore principale da 720mm studiate per il volo ad alta velocità e pale rotore di coda con punta arrotondata per ottimizzare il consumo di energia e ridurre la rumorosità ad alto numero di giri.

• Main rotor diameter: 1628 mm (with 720 mm blades)
• HPS Head
• Main blade length: 690-720 mm
• Tail rotor diameter: 293 mm
• Tail blade length: 104mm
• Main shaft diameter: 12 mm
• Tail shaft diameter: 6 mm
• Spindle shaft diameter: 10 mm
• Gear Ratios 8.6-11.9 : 1
• Weight including electronics: 3620 g (excluding flight battery).

• 22T motor pulley included (other pulley sizes available)

• All pulleys are made for 6 and 8 mm motor shaft

• Cyclic Servos: Standard size (40mm)
• Tail Servo: Standard size (40mm)
• Typical Speed Controller: 120-160A
• Motors: (Max Diameter: 64 mm, Max Height: 64 mm)
• Battery compartment: until 75x58x350mm


Kit Includes:
• 22T motor pulley (other pulley sizes available)
• 2 battery tray
• 720 mm main blades
• 114 mm tail blades

18T Pulley (P/N H0175-18-S) Ratio 11.9:1
19T Pulley (P/N H0175-19-S) Ratio 11.3:1
20T Pulley (P/N H0175-20-S) Ratio 10.7:1
21T Pulley (P/N H0175-21-S) Ratio 10.2:1
22T Pulley (P/N H0175-22-S) Ratio 9.8:1
23T Pulley (P/N H0175-23-S) Ratio 9.3:1
24T Pulley (P/N H0175-24-S) Ratio 8.9:1
26T Pulley (P/N H0175-26-S) Ratio 8.6:1
