SK-200013 EFUEL 30A POWER SUPPLY |
 |
|
|
*Il prezzo si intende IVA inclusa
Descrizione

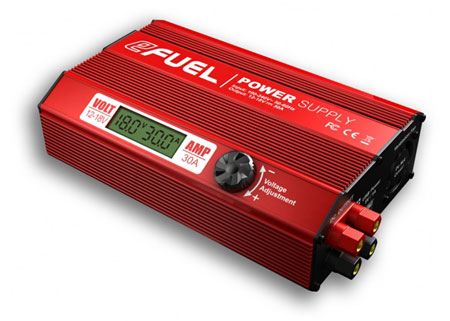

Your eFUEL switching DC Power Supply is designed to use household AC power source to power equipments that required DC power. The eFUEL converts standard household power 100-240V AC to 12-18V DC power and can supply up to 30 amperes of continuous power.
FEATURES
* Two DC power outputs, up to 30 amperes
* Output voltage adjustable 12-18V
* Large LCD indicates voltage and current amperes output
* Two USB ports, 5 volts, 1000mA total for MP3 player, mobile phone and digital cameras
* Smart cooling fan
* Over temperature protection
* Over loading protection
* Short circuit protection
Voltage 100-240V AC
Input AC Frequency 50-60Hz
Output Voltage 12-18V DC±0.5V
Output Current 30A±1A
Current Overload Protectio31A 500MS
Input Fuse 10A Fuse
LCD Display Voltage Precision ±0.3V
Current
Precision ±0.3A
Output Voltage Ripple< 150mV
Power Efficiency 89%
Power Factor> 0.98
Over Temperature Protection<65?
Cooling Method Cooling Fan
Operating Temperature 0-40?
Operating Humidity 0-90%
Dimensions (L*W*H) 218x139x59.5mm
Net weight 1.62kg
Specifications are typical; individual units might vary. Specifications are subject to change and improvement without notice.
