SB049 MOTORE XNOVA 4020 1200KV GOBLIN 500 |
 |
|
|
Prezzo*: € 165,00
|
|
Siamo spiacenti, il prodotto non è al momento disponibile.
Richiedi avviso
|
|
*Il prezzo si intende IVA inclusa
Descrizione
Xnova 4020-1000KV 2Y
The Xnova 4020-1000KV is perfect for any 500mm up to 620mm Blade Heli flying on 6S up to 8S.The choice inbetween power and long flight time.
Slots & Poles 24n8p
Winding T 2Y
rpm/V 1000
Volt (V) 10 | 20
Io(A) 1.9 | 3
Rm (mohm) 8.4 | 8.4
Weight (without connector) (g) 348
Body Length (no shaft) mm 50.75
Diameter (mm) 49.5

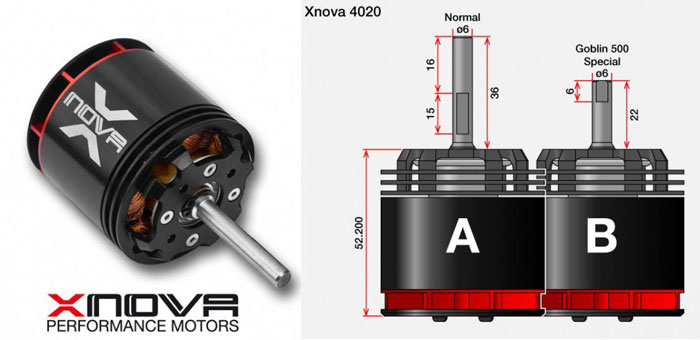

Shaft Length (mm) (Details pictures) | 36 | 22
Shaft Dia. (mm) 6
Mounting Holes CTC Distance (mm) 25
Mounting Screw 3x0.5
Max Eff. Curr. 47.56 | 84.52
Max Eff. 92.01 | 92.90
Kt (Nm/A 0.0095
Km (Nm/sqrt(w)) 0.1042
Max Continuous Power(Watts) 2200
Peak Continuous Power(Watts) (5 sec) 2800
Max cont. current (A) 100
