SB050 MOTORE XNOVA 4025 560KV GOBLIN 570 |
 |
|
|
Prezzo*: € 198,00
|
|
Siamo spiacenti, il prodotto non è al momento disponibile.
Richiedi avviso
|
|
*Il prezzo si intende IVA inclusa
Descrizione
550-630 size helicopters for sport flying on 8s-10s or extreme flying on 10-12s.Peak efficiency occurs at ~50A on 8s.
Slots & Poles 24n8p
Winding T 3Y
rpm/V 560
Volt (V) 10 | 20 | 30
Io(A) 0.9 | 1.2 | 1.6
Rm (mohm) 19 | 19 | 19
Weight (without connector) (g) 384

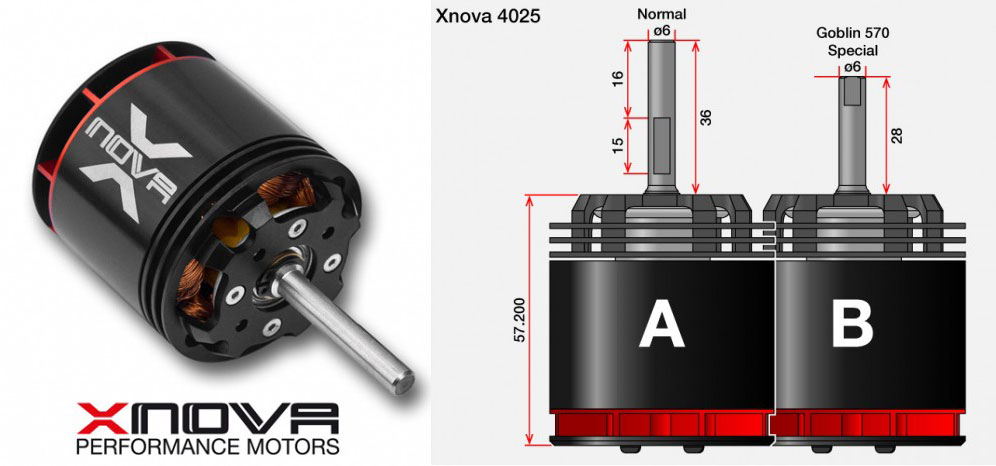

Body Length (no shaft) mm 55.75
Diameter (mm) 49.5
Shaft Length (mm) (Details pictures) | 36 | 25
Shaft Dia. (mm) 6
Mounting Holes CTC Distance (mm) 25
Mounting Screw 3x0.5
Max Eff. Curr. 21.76 | 35.54 | 50.26
Max Eff. 91.73 | 93.25 | 93.63
Kt (Nm/A 0.0171
Km (Nm/sqrt(w)) 0.1237
Max Continuous Power(Watts) 3000
Peak Continuous Power(Watts) (5 sec) 4000
Max cont. current (A) 68
