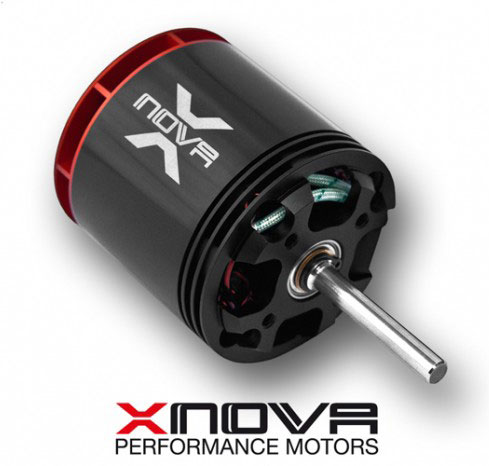

SB054 MOTORE XTS-XNOVA 4530 480KV GOBLIN 700 |
 |
|
|
Prezzo*: € 360,00
|
|
Siamo spiacenti, il prodotto non è al momento disponibile.
Richiedi avviso
|
|
*Il prezzo si intende IVA inclusa
Descrizione
Designed for extrem 3D 700-800mm helicopter where highest power to weight ratio is important.
Slots & Poles 12n10p
Winding T 5+5 YY with 1.4mm thick wire
rpm/V 480
Volt (V) 10 | 20 | 30 | 40
Io(A) 1.4 | 2 | 2.8 | 3.5
Rm (mohm) 12 | 12 | 12 | 12
Weight (without connector) (g) 535
Body Length (no shaft) mm 60.5
Diameter (mm) 55.7
Shaft Length (mm) (Details pictures) | 38 | 27
Shaft Dia. (mm) 6 | 8 |10
Mounting Holes CTC Distance (mm) 30
Mounting Screw 4x07
Max Eff. Curr. 34.16 | 57.74 | 83.67 | 108.01
Max Eff. 91.80 | 93.07 | 93.31 | 93.52
Kt (Nm/A 0.0199
Km (Nm/sqrt(w)) 0.1816
Max Continuous Power(Watts) 5600
Peak Continuous Power(Watts) (5 sec) 11000 (2sec)
Max cont. current (A) 130
